Dual, Three DX7 Micro-Piezo Print Head
Type: Eco-Solvent, Water-Base

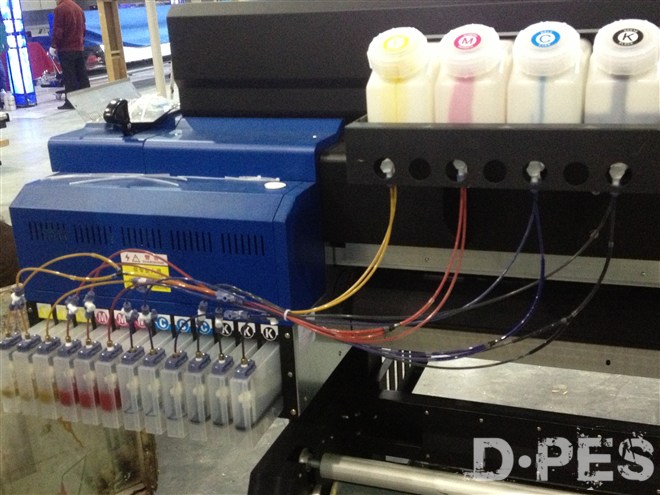

Ink Colors: CMYK 2*4Cartriages*350ml, for 7703L, it gets 12 Cartriages
Maximum Resolution: 720*1440dpi
Height of Printhead: Adjustable 2 to 5mm
Interface: USB 2.0
Print width: 3.2m
4pass Speed: 32/43.5 sqm/hour
RIP Software: IPrint(SDK available), Optional Photoprint 10.5,Wasatch
Heating: Dry fan system
Pre and Post heating to 80 celsius degree with PID control
Optional IR Heater
Fumigation wooden box
Dimension(M): W x D x H 4.30 x 0.90 x 1.25 395kg
Packing 4.50 x 0.98 x 0.70 575kg
A-Starjet's designe is based on the idea of easy use, high flexibility and stable productivity.
We provide free and easy use Rip named Iprint for A-Starjet. We keeps updating for better usage. The 16-bits Iprint offers better color reproduction and color transition for media printing.
Single USB2.0 Port,
We update the data communication port to USB2.0 since July, 2012. This makes data transfer faster and more stable, enable stable production.

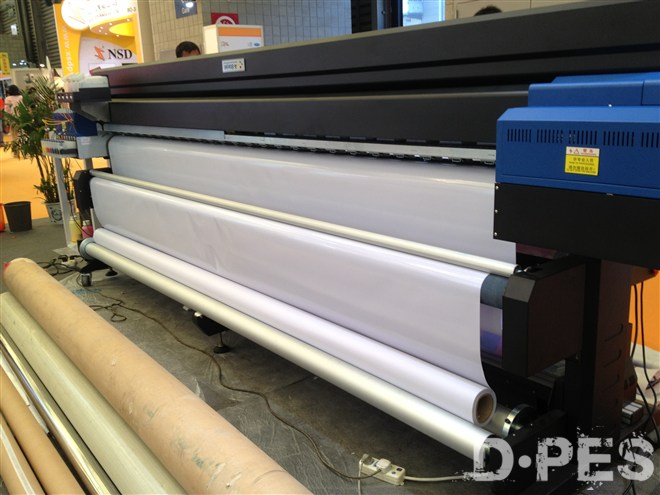

Tension Media Handle System,
The large platform offers enough space for heating system. When massive products being put out, the heating system is enoguh to handle. Nothing will limit the speed and profit.
Considering the media is very heavy, the tension also influence print precision, we designed two version media handle system for different usage. The tolerance for media's length is within 0.3%.
DX7 printhead can take higher voltage than DX5, it makes it's print speed can be 15% faster than DX5. DX5 has different head(silve surface for water based, gold surface for eco solvent) while DX7 is one for all.
All parts, softwares are made by ourown. We have enough experience on large format printing, to help clients to use printer, sell printer, do modification on software or printer to fit local market, these are acceptable.
Life-time free techinical support directly from manufacturer.
Official Service time: 8:30am to 5:30pm(GMT +8), Monday to Saturday by TEM8 qualified Engineer
Skype ID: "astarjetservice" Personal ID "zqw-na"
All parts directly contact with ink are not guaranteed except use A-Starjet's ink
5 months guarantee for DC motor
15 months for all Boards
Counting from the day that printer leaves factory
Within guarantee time, factory covers freight for sending parts
