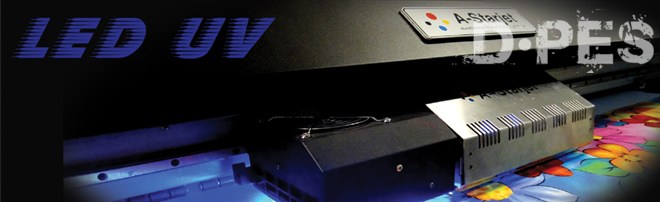

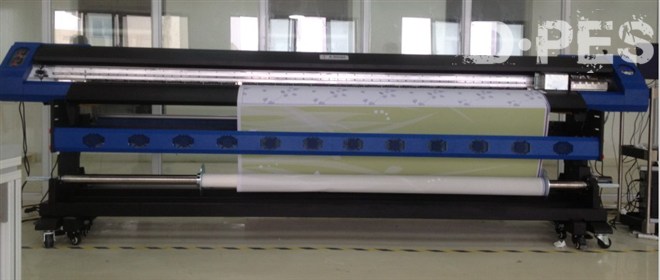

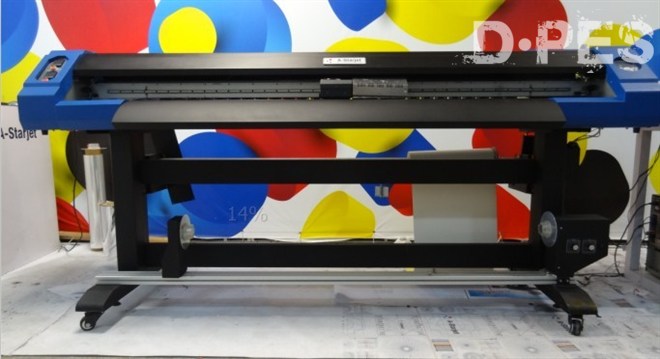

Product Name:A-Starjet LED UV

Product Details:
Model:
7701, 7702, 7703
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 0.00-0.00 /
Shipping Terms:
1
Shippment Port:
Shanghai
Payment Terms:
T/T,Western Union,MoneyGram
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets per Month
Delivery Time:
5 days after deposit received
Packaging:
For 7701/02/03UV Dimension(M): W x D x H 2.84 x 0.90 x 1.25 220kg Packing 2.94 x 0.98 x 0.70 360kg For 7702L/03LUV Dimension(M): W x D x H 4.30 x 0.90 x 1.25 395kg Packing 4.50 x 0.98 x 0.70 575kg

Detailed Product Description:

Briefing.

1.72m/3.1m print width with Epson's Micro Piezo head.

Able to print on almost any substrate with UV curing technology.


Mode:

CMYK+W+CMYK:

For indoor light box.

Traditional double sided light box need print at both side, 100% precision is extremely difficult to reach. The CMYK+White+CMYK mode makes print on same side makes double sided products gets 100% precision.


White+CMYK:

For transparant media; For media with colored back ground;


W+CMYK+Glossy Oil:

Glossy oil for protect image or lamination;


3*CMYK

High speed printing on sppecial media such as leather, curtain;


LED UV:

Cold light source, supports printing on almost any substrate including thermosensitive media.

Print Head: Three DX7

Type: UV printing

Ink Colors: CMYK(W+Glossy oil) 3*4Cartriages*350m

Maximum Resolution: 720*1440dpi

Height of Printhead: Adjustable 2 to 5mm

Interface: USB 2.0

Printing width: 1.8m/3.2m

Print Speed:

             4+1 Pass 21sqm per hour.

(4+1/4+4Pass is suggested for UV printing)


RIP Software: IPrint for free, Optional Photoprint DX/Servo/Pro


Heater: Pre and Post heating  to 80 celsius degree with PID control(Since ink will dry under UV light, the heat system should be operated depends on media)


The printer is equipment with
1) Take up system
2) Feeding system

3) Two inbuilt heaters
4) Cooling fan
* IR heater, Bulk Ink supply system are Optional 5) 110V/220V Eco-Solvent/Water-Base, Plug type

Link:* * https://www.youtube.com/watch?v=vSugJvvzDLk

If use DX5 head, printer is able to install 1/2 heads. If use DX7 head, it is able to install 1/2/3 heads.
