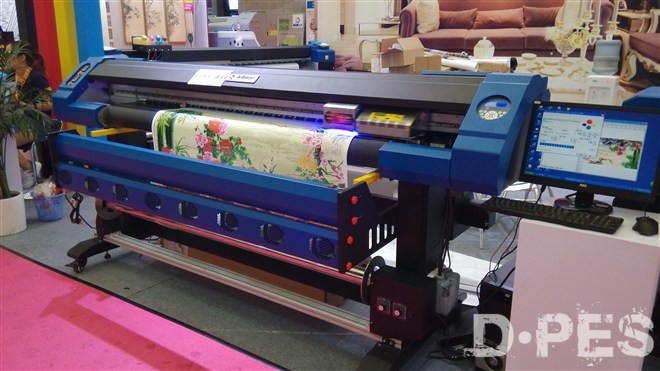

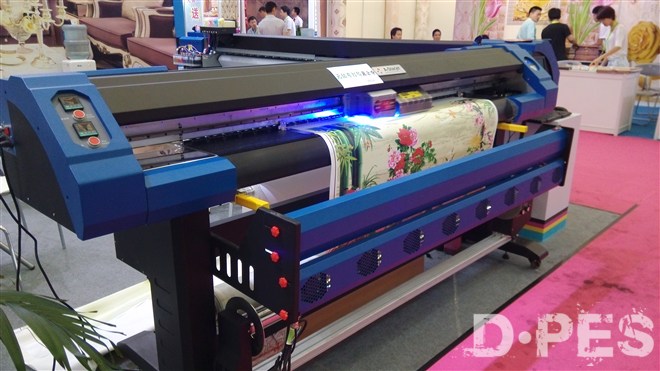

Product Name:A-starjet LED UV printer

Product Details:
Model:
7701,7702,7703
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 0.00-0.00 /Set
Shipping Terms:
1
Shippment Port:
Shanghai
Payment Terms:
T/T,Western Union,MoneyGram
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets per Month
Delivery Time:
5 days after deposit received
Packaging:
For 7701/02/03UV Dimension(M): W x D x H 2.84 x 0.90 x 1.25 220kg Packing 2.94 x 0.98 x 0.70 360kg For 7702L/03LUV Dimension(M): W x D x H 4.30 x 0.90 x 1.25 395kg Packing 4.50 x 0.98 x 0.70 575kg

Detailed Product Description:

Quick Details:

Print Head: Three DX7

Type: UV printing

Ink Colors: CMYK(W+Glossy oil) 3*4Cartriages*350m

Maximum Resolution: 720*1440dpi

Height of Printhead: Adjustable 2 to 5mm

Interface: USB 2.0

Printing width: 1.8m/3.2m

Print Speed:

             4+1 Pass 21sqm per hour.

(4+1/4+4Pass is suggested for UV printing)


RIP Software: IPrint for free, Optional Photoprint DX/Servo/Pro


Heater: Pre and Post heating  to 80 celsius degree with PID control(Since ink will dry under UV light, the heat system should be operated depends on media)


Briefing: UV version’s print width is 1.72m,3.10m. White ink is acceptable.

                1. Generally speaking, UV printer is able to print on any kind of material.

                     a. Our UV is roll to roll version

                     b. There are several version UV ink,

                     1) For soft material

                     2) For leather, won’t crack when wrinkle

             c. We also have UV ink and Coating liquid for hard material



If use DX5 head, it is able to install 1/2 heads.

If use DX7 head, it is able to install 1/2/3 heads.



Advantage:1.Basically print on any media, dry instantly

                  2.LED cold UV resource, environment-friendly

                  3.UV ink curing on surface instead of being absorbed by media.Vivid color,3D, long last                      image

                  4.Up to 1440Dpi provides finest details.

                  5.Modularity, to upgrade former eco-solvent printer to get dominate.

After-sale Service:

  • Life-time free technical support directly from manufacturer.
  • Official Service time: 8:30am to 5:30pm(GMT +8), Monday to Saturday by TEM8 qualified Engineer/sale
  • Skype ID: shirleen@astarjet.com

Guarantee Term:

  • All parts directly contact with ink are guaranteed when usingA-Starjet's ink
  • 5 months guarantee for DC motor
  • 15 months for all Boards
  • Counting from the day that printer leaves factory
  • Within guarantee time, factory covers freight for sending parts
