Product Name:Stretch/Soft/PVC ceiling film Printer

Product Details:
Model:
A-Starjet
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 0.00-0.00 /Set
Shipping Terms:
1
Shippment Port:
Shanghai
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
80 Set/Sets per Month
Delivery Time:
Packaging:
Fumigation wooden box Dimension(M): W x D x H 4.30 x 0.90 x 1.25 395kg Packing 4.50 x 0.98 x 0.70 575kg

Detailed Product Description:

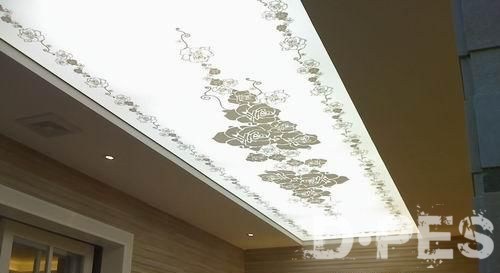

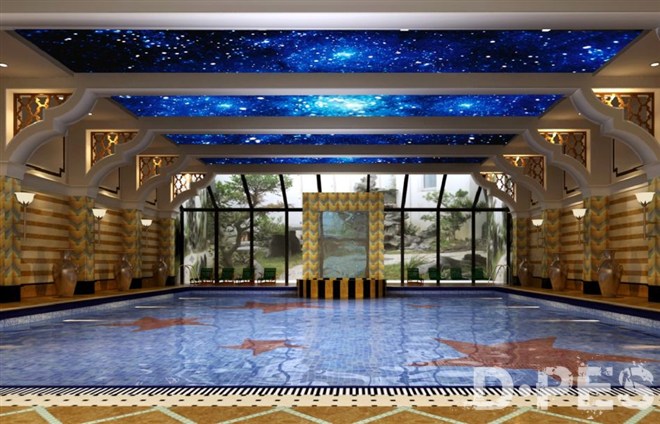

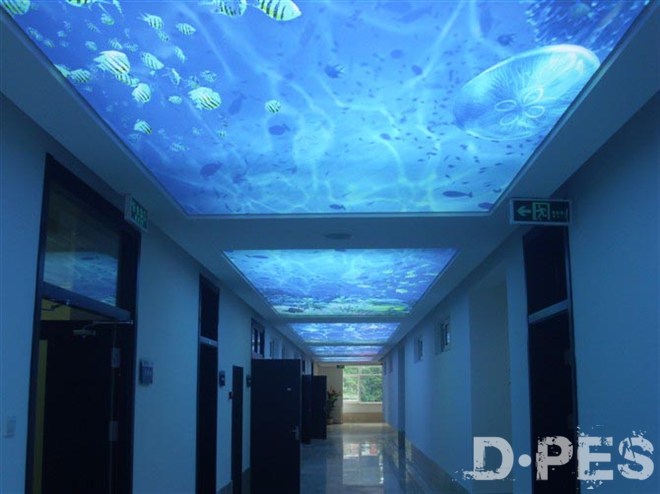

This version has special media feeding system to handle Stretch/Soft/PVC ceiling film

A-Starjet 02/03L

Dual, Three DX7 Micro-Piezo Print Head

Type: Eco-Solvent, Water-Base

Ink Colors: CMYK 2*4Cartriages*350ml, for 7703L, it gets 12 Cartriages

Maximum Resolution: 720*1440dpi

Height of Printhead: Adjustable 2 to 5mm

Interface: USB 2.0

Print width: 3.2m

4pass Speed: 32/43.5 sqm/hour

RIP Software: IPrint(SDK available), Optional Photoprint 10.5,Wasatch

Heating: Dry fan system
         Pre and Post heating  to 80 celsius degree with PID control
         Optional IR Heater

Packing Detail
Fumigation wooden box
Dimension(M): W x D x H 4.30 x 0.90 x 1.25  395kg
Packing                 4.50 x 0.98 x 0.70  575kg

Advantages:
A-Starjet's designe is based on the idea of easy use, high flexibility and stable productivity.
We provide free and easy use Rip named Iprint for A-Starjet. We keeps updating for better usage. The 16-bits Iprint offers better color reproduction and color transition for media printing.

Single USB2.0 Port,
We update the data communication port to USB2.0 since July, 2012. This makes data transfer faster and more stable, enable stable production.

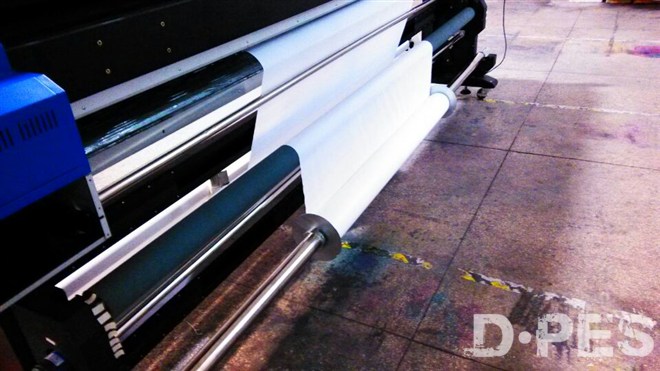

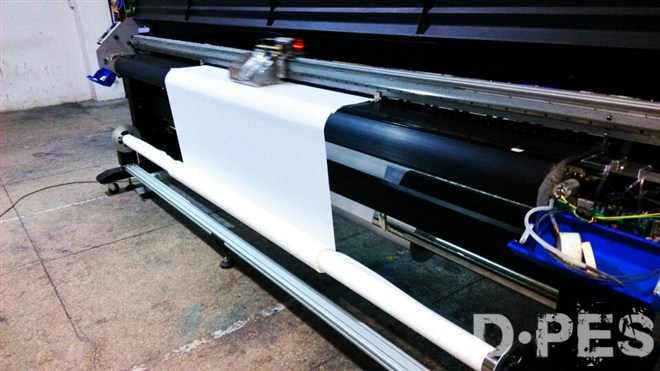

Tension Media Handle System,
The large platform offers enough space for heating system. When massive products being put out, the heating system is enoguh to handle. Nothing will limit the speed and profit.
Considering the media is very heavy, the tension also influence print precision, we designed two version media handle system for different usage. The tolerance for media's length is within 0.3%.

DX7 printhead,
DX7 printhead can take higher voltage than DX5, it makes it's print speed can be 15% faster than DX5. DX5 has different head(silve surface for water based, gold surface for eco solvent) while DX7 is one for all.

R&D manufacturer,
All parts, softwares are made by ourown. We have enough experience on large format printing, to help clients to use printer, sell printer, do modification on software or printer to fit local market, these are acceptable.


After-sale Service:
Life-time free techinical support directly from manufacturer.
Official Service time: 8:30am to 5:30pm(GMT +8), Monday to Saturday by TEM8 qualified Engineer
Skype ID: "astarjetservice" Personal ID "zqw-na"
Mail: Postmaster@astarjet.com


Guarantee Term:
All parts directly contact with ink are not guaranteed except use A-Starjet's ink
5 months guarantee for DC motor
15 months for all Boards
Counting from the day that printer leaves factory
Within guarantee time, factory covers freight for sending parts
