Product Name:A-Starjet 7703L, Eco solvent, 10.5feet/3.2m, DX7 heads

Product Details:
Model:
7703
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 12000.00-14000.00 /Set
Shipping Terms:
1
Shippment Port:
Shanghai
Payment Terms:
T/T,Western Union,MoneyGram
Show Buyers your Ability to Supply:
Production Capacity:
150 Set/Sets per Month
Delivery Time:
Within 3 days
Packaging:
For 1.8M Dimension(M): W x D x H 2.84 x 0.90 x 1.25 220kg Packing 2.94 x 0.98 x 0.70 360kg For 3.2 Dimension(M): W x D x H 4.30 x 0.90 x 1.25 395kg Packing 4.50 x 0.98 x 0.70 575kg

Detailed Product Description:

Briefing

3.2m print width with three DX7 print head, DX5 is optional


The printer is equipped with

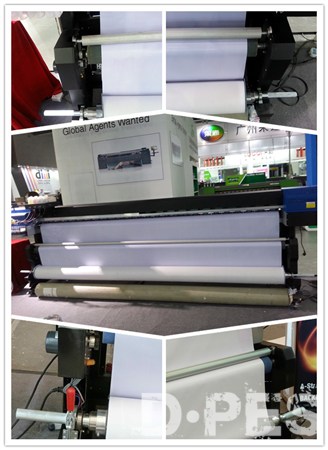

1) Take up system
Speed and Torque controllable. Most media can be properly handled with this system.

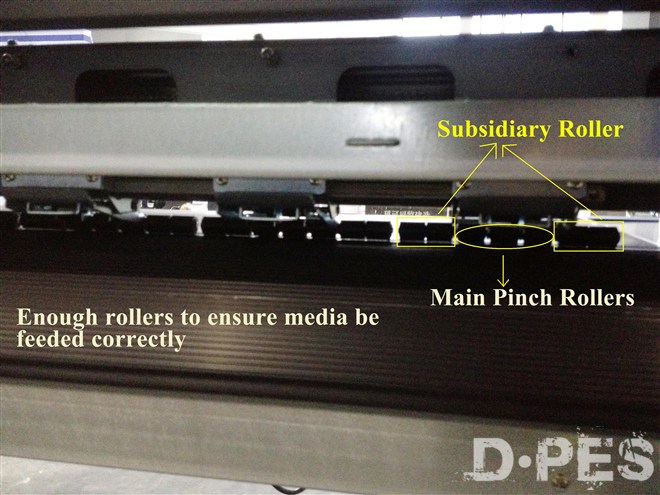

2) Feeding system

a. One is easy to load media

b. The other is suit to print on light media



3) Two inbuilt heaters
4) Cooling fan
5) 110V/220V Eco-Solvent/Water-Base, Plug type

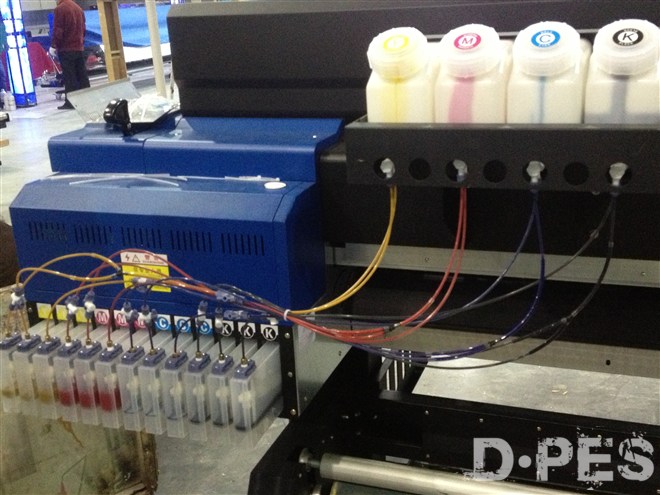

6) Bulk Ink supply system

IR heater is Optional,

Link: https://www.youtube.com/watch?v=kqz7tvVkTNw



A-Starjet 7703L

Three DX7 Micro-Piezo Print Heads

Type: Eco-Solvent, Water-Base

Ink Colors: Large Ink Supply system with CMYK 2*4Cartriages*350ml,

Print width: 3.2m

4pass Speed: 43.5 sqm/hour

RIP Software: IPrint, Optional Photoprint 10.5,



Packing Detail
Fumigation wooden box
Dimension(M): W x D x H 4.30 x 0.90 x 1.25 395kg
Packing 4.50 x 0.98 x 0.70 575kg



Advantages:

1 Tension Media Handle System,
The large platform offers enough space for heating system. When massive products being put out, the heating system is enough to handle. Nothing will limit the speed and profit.
Considering the media is very heavy, the tension also influence print precision, we designed two version media handle system for different usage. The tolerance for media's length is within 0.3%.

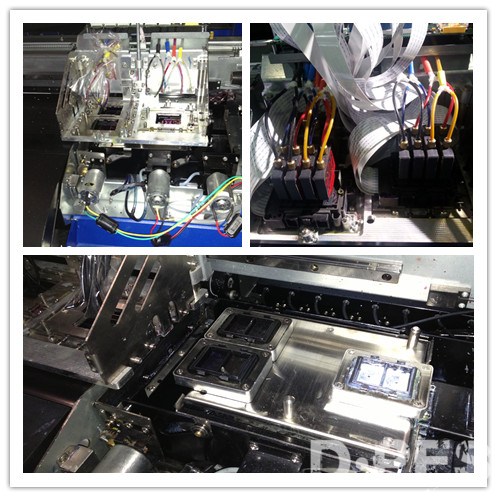

2. DX7 printhead,
DX7 printhead can take higher voltage than DX5, it makes it's print speed can be 15% faster than DX5. DX5 has different head(silver surface for water based, gold surface for eco solvent) while DX7 is one for all.

3. R&D manufacturer,
All parts, softwares are made by ourselves. We have enough experience to help clients get what they need


After-sale Service:
Life-time free technical support directly from manufacturer.
Official Service time: 8:30am to 5:30pm(GMT +8), Monday to Saturday by TEM8 qualified Engineer
Skype ID: "astarjetservice" Personal ID "zqw-na"



Guarantee Term:
All parts directly contact with ink are guaranteed when usingA-Starjet's ink
5 months guarantee for DC motor
15 months for all Boards
Counting from the day that printer leaves factory
Within guarantee time, factory covers freight for sending parts
